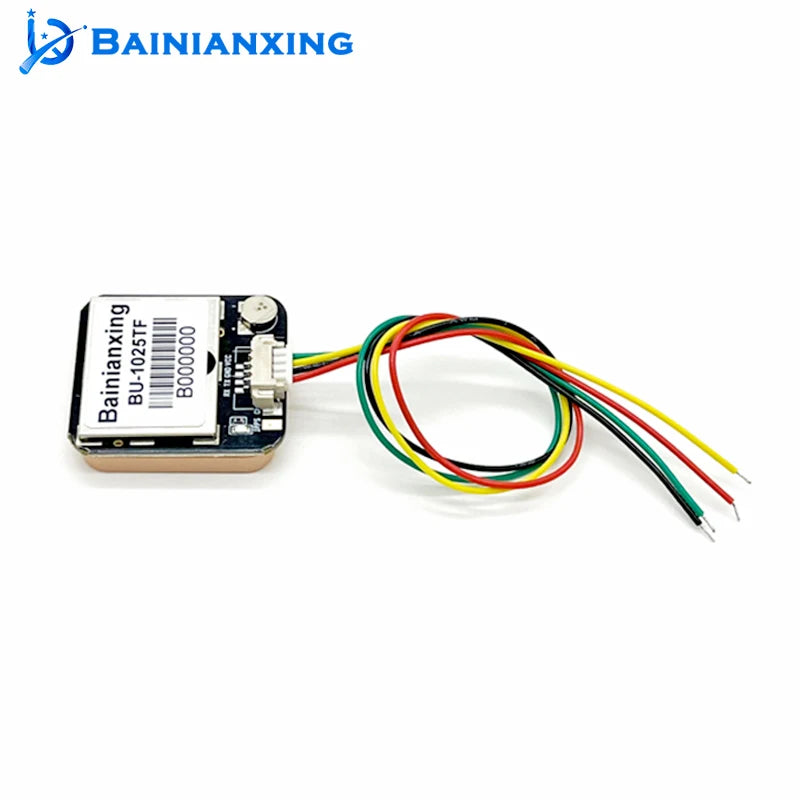

SPECIFICATIONS

Antenna: 25*25*4mm Ceramic antenna

Baud rate: Default 38400bps

Brand Name: bainianxing

Chipset: UBX-M10050-KB

Communication type: UART TTL

Connector: 1.25mm 4Pin

Flash: with 8MB flash memory

GPS type: Receiver & Antenna

High-concerned chemical: None

Model Name: BU-1025TF

Origin: Mainland China

Output protocol: NMEA-0183

Product name: GNSS Module

Update frequency: 1HZ

VCC: 5V

Working mode: GPS & Galileo & & BeiDou & QZSS

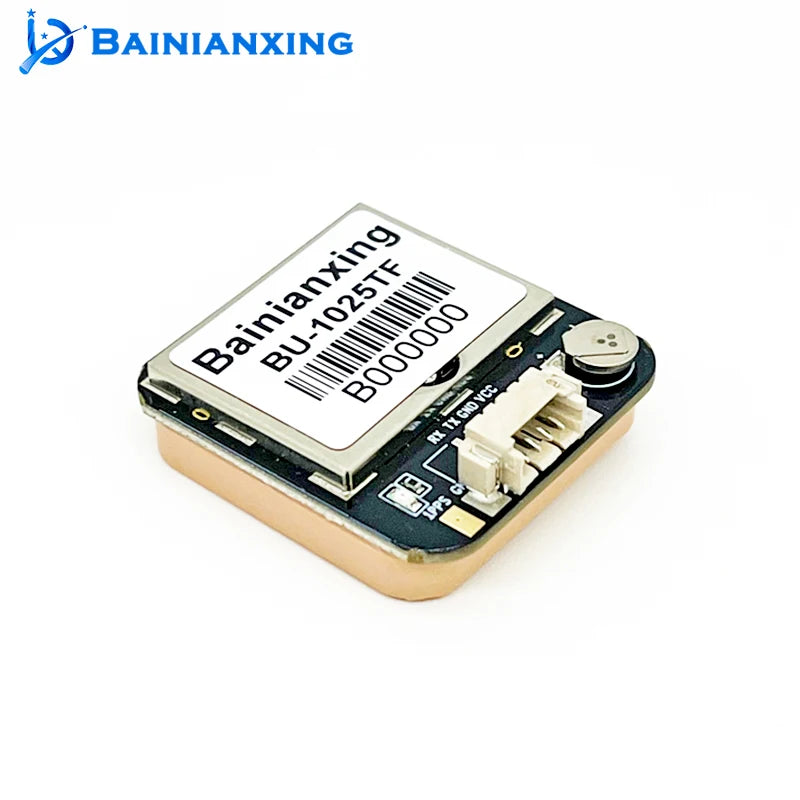

The BU-1025TF is built on the ultra-low power UBX M10 GNSS platform, which provides exceptional sensitivity and acquisition times.



The extremely low power consumption of less than 25mW in continuous tracking mode allows great power autonomy for all battery-operated devices, such as asset trackers, without compromising GNSS performance. The BU-1025TF supports the reception of GPS, GLONASS, Galileo, and BeiDou. The high number of visible satellites enables the receiver to select the best signal. This maximizes position availability, especially in challenging conditions, such as in deep urban canyons.



The BU-1025TF adopts super-S technology, which offers great RF sensitivity and can improve the dynamic position accuracy by up to 25% with small antennas or in a non-line-of-sight scenario.



The BU-1025TF module integrates an LNA and a SAW filter in the RF path for maximum sensitivity in passive antenna designs. BU-1025TF offers a cost and power-optimized setup without LNA and SAW filters. Advanced filtering algorithms mitigate the impact of RF interference and jamming, thus enabling the product to operate as intended.



♦ Features：
● Build on the high performance, high accuracy, low-power consumption UBX-M10050-KB chipset
● Ultra high sensitivity: -167dBm
● Extremely fast TTFF at low signal level
● Built-in high-gain LNA
● Ultra-low power consumption

● Higher Position Accuracy: 1.5m CEP
● NMEA-0183 compliant protocol or custom protocol
● Operating voltage: 3.3V--5.0V
● Operating temperature range:-40 to 85℃
● Patch Antenna Size: 25x25x4mm ceramic antenna
● Communication type: UART TTL Level
● Wire interface type:1.25mm 4Pin connector
● RoHS compliant (Lead-free)



This module has added flash memory, configuration settings can be modified with configuration messages. The modified settings will be stored in flash memory and remain effective until reset.

♦ Applications：

●  UAV

●  Boat

● LBS (Location Based Service)
● PND (Portable Navigation Device)
● Computer

● Outdoor Equipment

● Handheld GPS Device. etc

♦ Product Parameters：

● The GPS Module going to ship is based on the default parameters in the table below:

Item	Description
Spec of Chip	Chip	UBX-M10050-KB
	Receiving mode	Support GPS, GLONASS, Beidou, Galileo, QZSS, SBAS
	Frequency	GPS L1 C/A QZSS L1 C/A/S, GLONASS L10F, BeiDou B1I/B1C, Galileo E1B/C, SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
	Working mode	GPS, Galileo, BeiDou, QZSS
Sensitivity	Tracking	-167dBm
	Reacquisition	-161dBm
	Cold start	-148dBm
	Hot start	-157dBm
Accuracy	Horizontal accuracy	1.5m CEP
	Velocity	0.1m/s 95% (SAoff)
	Timing	60ns
Start Time	Cold start	24s
	Warm start	2s
	Hot start	1s
Output Data	Baud rate	Default 38400bps (Supports 4800bps to 921600bps)
	Communication type	UART TTL Level
	Output protocol	NMEA-0183 protocol
	Single GNSS	Up to 10Hz
	Standard GNSS	Default 1Hz
Work Limit	Altitude	80000m Max
	Velocity	515m/s
	Gravitational Acceleration	4g Max
Power Consumption	Voltage	5.0V
	Current	Normal 35mA 5.0V

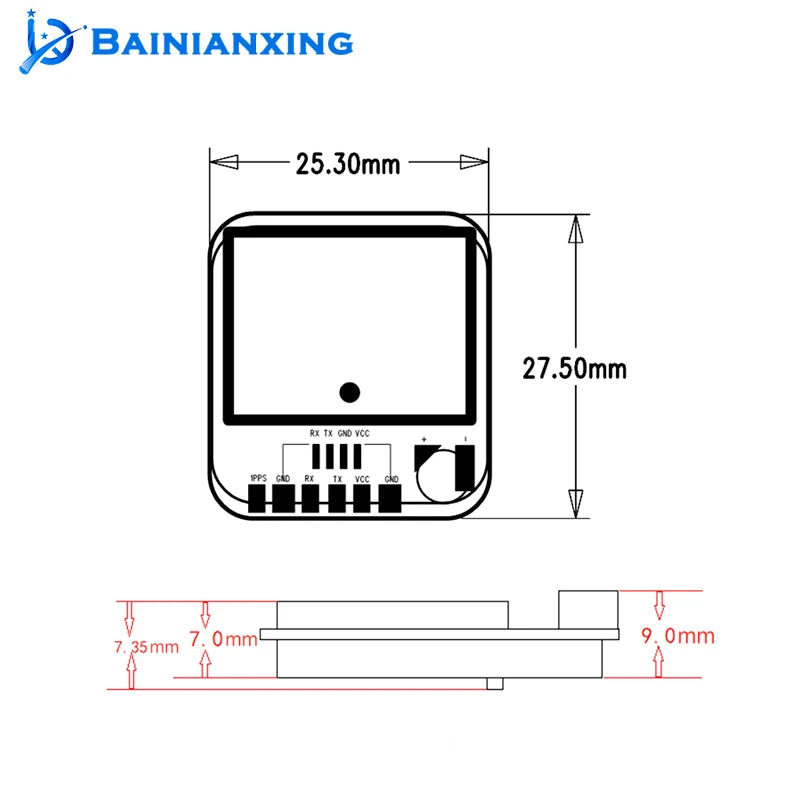

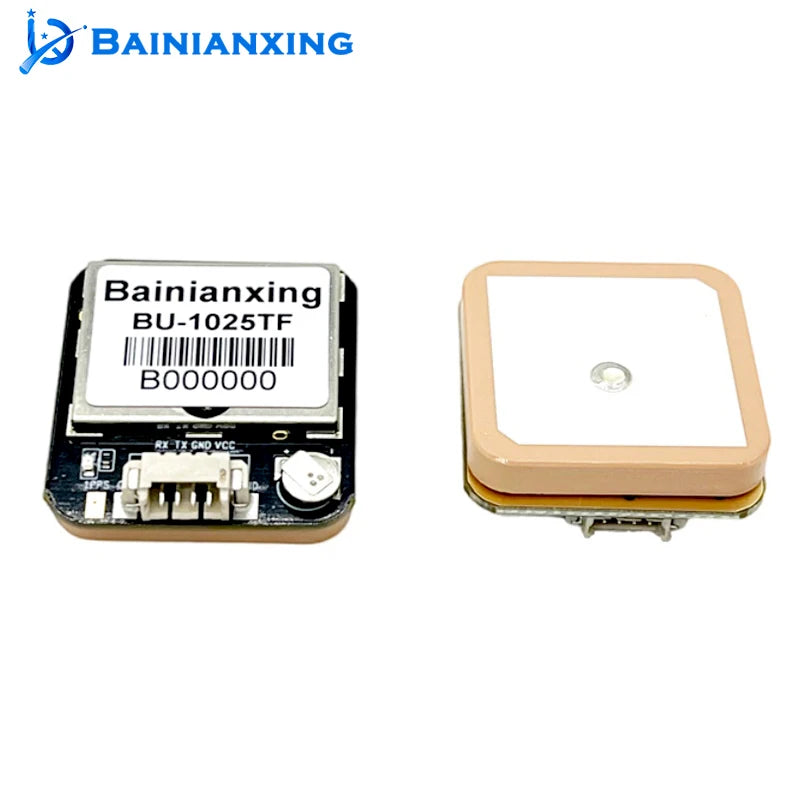

Physical Parameters	Size	27.5mm*25.3mm*9.35mm
	Weight	8g
	Connector type	1.25mm 4Pin(RX,TX,GND,VCC)
Antenna	Antenna	ceramic antenna 25mm*25mm*4mm
Output Protocol	Default Protocol	RMC,VTG,GGA,GSA,GSV,GSV,GLL
Environment	Operating temperature	-40℃ to +85℃
	Storage temperature	-40℃ to +85℃

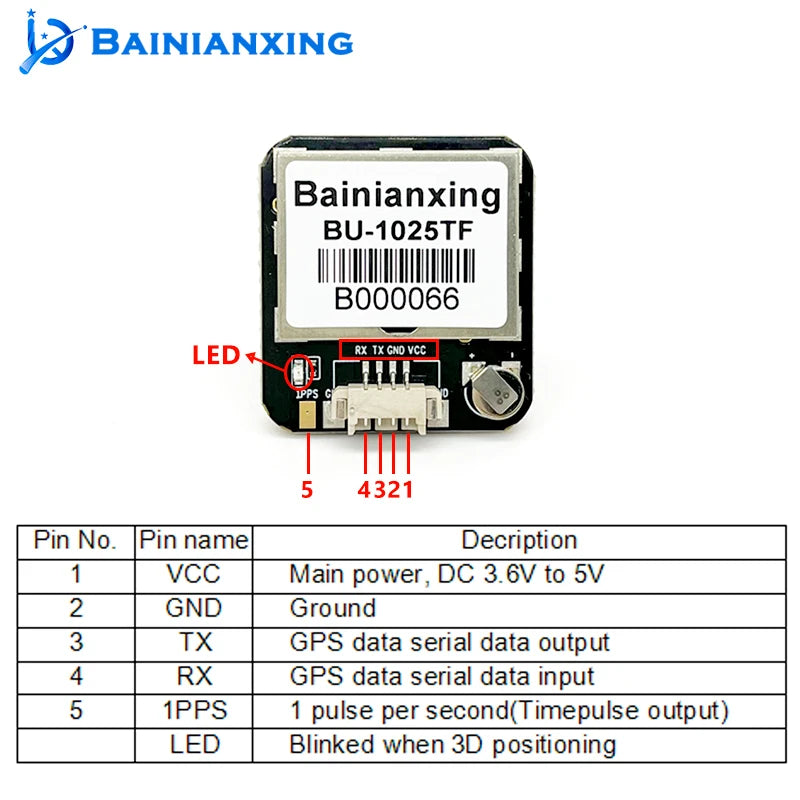

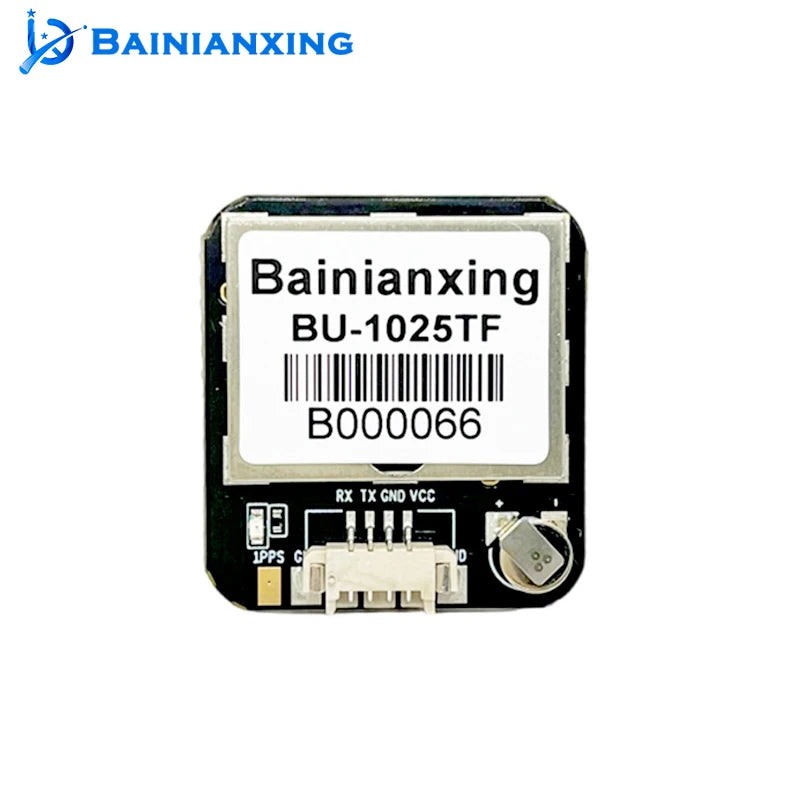

♦Pin assignment

Notice: When you connect the module, please according to the pin definition marked on the module not the color of the wire!

♦ Signal testing sample: Testing environment: Open Sky, stationary
